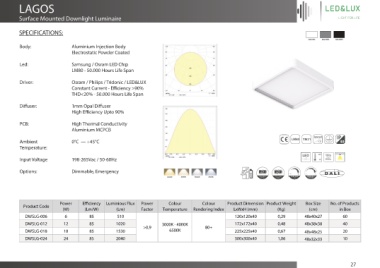

Page 27 - LED&LUX Catalogue- V1.0
P. 27
LAGOS
Surface Mounted Downlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / LED&LUX
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWSLG-006 6 85 510 120x120x40 0,29 48x40x27 60
DWSLG-012 12 85 1020 3000K - 4000K 172x172x40 0,48 48x38x38 40
>0,9 80+
DWSLG-018 18 85 1530 6500K 225x225x40 0,67 48x48x25 20
DWSLG-024 24 85 2040 300x300x40 1,06 48x32x33 10
27
