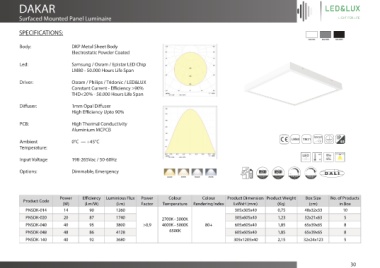

Page 30 - LED&LUX Catalogue- V1.0
P. 30
DAKAR
Surfaced Mounted Panel Luminaire
SPECIFICATIONS:
Body: DKP Metal Sheet Body
Electrostatic Powder Coated
Led: Samsung / Osram / Epistar LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic / LED&LUX
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNSDK-014 14 90 1260 305x305x40 0,75 48x32x33 10
PNSDK-020 20 87 1740 2700K - 3000K 305x605x40 1,23 32x21x63 5
PNSDK-040 40 95 3800 >0,9 4000K - 5000K 80+ 605x605x40 1,85 65x39x65 8
PNSDK-048 48 86 4128 6500K 605x605x40 1,85 65x39x65 8
PNSDK-140 40 92 3680 305x1205x40 2,15 32x24x123 5
