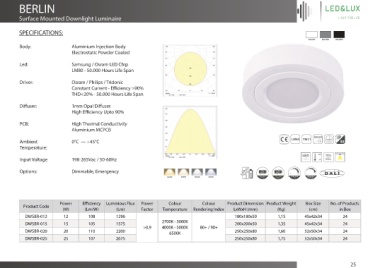

Page 25 - LED&LUX Catalogue- V1.0
P. 25
BERLIN
Surface Mounted Downlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWSBR-012 12 108 1296 180x180x50 1,15 45x42x34 24
2700K - 3000K
DWSBR-015 15 105 1575 200x200x50 1,35 45x42x34 24
>0,9 4000K - 5000K 80+ / 90+
DWSBR-020 20 110 2200 6500K 250x250x80 1,60 52x50x34 24
DWSBR-025 25 107 2675 250x250x80 1,75 52x50x34 24
25
