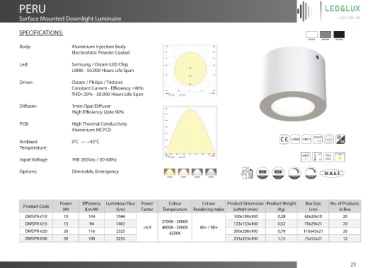

Page 23 - LED&LUX Catalogue- V1.0
P. 23
PERU
Surface Mounted Downlight Luminaire
SPECIFICATIONS:
Body: Aluminium Injection Body
Electrostatic Powder Coated
Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span
Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span
Diuser: 1mm Opal Diuser
High Eciency Upto 90%
PCB: High Thermal Conductivity
Aluminium MCPCB
Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac
Options: Dimmable, Emergency
Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWSPR-010 10 104 1044 100x100x100 0,28 60x20x10 20
2700K - 3000K
DWSPR-015 15 94 1402 133x133x100 0,52 70x29x21 20
>0,9 4000K - 5000K 80+ / 90+
DWSPR-020 20 116 2325 6500K 200x200x100 0,79 110x43x21 20
DWSPR-030 30 108 3235 233x233x100 1,15 75x55x21 12
23
