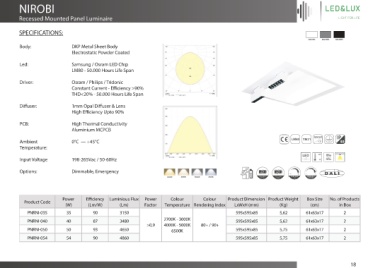

Page 18 - LED&LUX Catalogue- V1.0

NIROBI

Recessed Mounted Panel Luminaire

SPECIFICATIONS:

Body: DKP Metal Sheet Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser & Lens
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
PNRNI-035 35 90 3150 595x595x85 5,62 61x63x17 2

PNRNI-040 40 87 3480 2700K - 3000K 595x595x85 5,62 61x63x17 2
>0,9 4000K - 5000K 80+ / 90+
PNRNI-050 50 93 4650 6500K 595x595x85 5,75 61x63x17 2
PNRNI-054 54 90 4860 595x595x85 5,75 61x63x17 2

18
