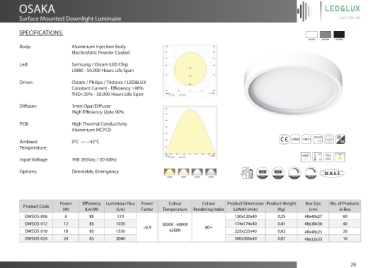

Page 26 - LED&LUX Catalogue- V1.0

OSAKA

Surface Mounted Downlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / LED&LUX
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWSOS-006 6 85 510 120x120x40 0,25 48x40x27 60
DWSOS-012 12 85 1020 3000K - 4000K 174x174x40 0,41 48x38x38 40
>0,9 80+
DWSOS-018 18 85 1530 6500K 225x225x40 0,62 48x48x25 20
DWSOS-024 24 85 2040 300x300x40 0,87 48x32x33 10
