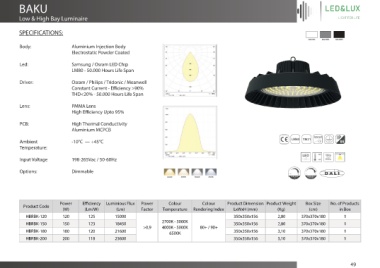

Page 49 - LED&LUX Catalogue- V1.0

BAKU

Low & High Bay Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Lens: PMMA Lens
High Eciency Upto 95%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 65
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
HBRBK-120 120 125 15000 350x350x156 2,80 370x370x180 1
2700K - 3000K
HBRBK-150 150 123 18450 350x350x156 2,80 370x370x180 1
>0,9 4000K - 5000K 80+ / 90+
HBRBK-180 180 120 21600 6500K 350x350x156 3,10 370x370x180 1
HBRBK-200 200 118 23600 350x350x156 3,10 370x370x180 1

49
