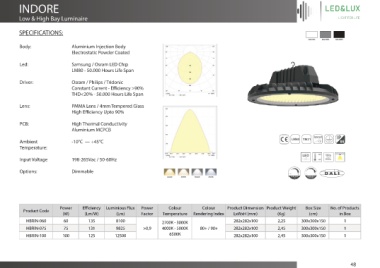

INDORE

         Low & High Bay Luminaire


          SPECIFICATIONS:


          Body:                  Aluminium Injection Body
                                 Electrostatic Powder Coated

          Led:                   Samsung / Osram LED Chip
                                 LM80 - 50.000 Hours Life Span

          Driver:                Osram / Philips / Tridonic
                                 Constant Current - Eciency >90%
                                 THD<20% - 50.000 Hours Life Span


          Lens:                  PMMA Lens / 4mm Tempered Glass
                                 High Eciency Upto 90%


          PCB:                   High Thermal Conductivity
                                 Aluminium MCPCB

          Ambient                -10°C  — +45°C                                                                                                         65
          Temperature:
                                                                                                                                              45°C  198Vac
          Input Voltage          198-265Vac / 50-60Hz                                                                                         -10°C  264Vac


          Options:               Dimmable








                            Power     Eciency  Luminious Flux  Power       Colour         Colour     Product Dimension Product Weight  Box Size    No. of Products
           Product Code
                             (W)       (Lm/W)        (Lm)       Factor   Temperature   Rendering Index   LxWxH (mm)         (Kg)          (cm)         in Box
             HBRIN-060       60         135         8100                 2700K - 3000K                   282x282x100        2,25       300x300x150       1

             HBRIN-075       75         131         9825        >0,9     4000K - 5000K    80+ / 90+      282x282x100        2,45       300x300x150       1
             HBRIN-100       100        125         12500                   6500K                        282x282x100        2,45       300x300x150       1
