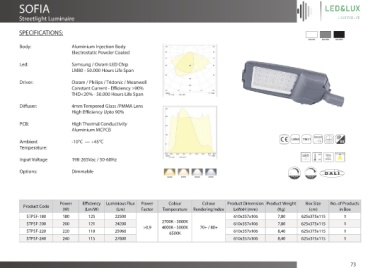

Page 73 - LED&LUX Catalogue- V1.0

SOFIA

Streetlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic / Meanwell
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 4mm Tempered Glass /PMMA Lens
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
STPSF-180 180 125 22500 610x357x106 7,80 625x375x115 1
2700K - 3000K
STPSF-200 200 121 24200 610x357x106 7,80 625x375x115 1
>0,9 4000K - 5000K 70+ / 80+
STPSF-220 220 118 25960 6500K 610x357x106 8,40 625x375x115 1
STPSF-240 240 115 27600 610x357x106 8,40 625x375x115 1

73
