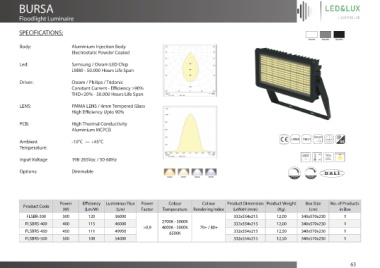

Page 63 - LED&LUX Catalogue- V1.0

BURSA

Floodlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

LENS: PMMA LENS / 4mm Tempered Glass
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -10°C — +45°C 66
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -10°C 264Vac

Options: Dimmable

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
FLSBR-300 300 120 36000 332x554x215 12,00 340x570x230 1
2700K - 3000K
FLSBRS-400 400 115 46000 332x554x215 12,00 340x570x230 1
>0,9 4000K - 5000K 70+ / 80+
FLSBRS-450 450 111 49950 6500K 332x554x215 12,50 340x570x230 1
FLSBRS-500 500 108 54000 332x554x215 12,50 340x570x230 1

63
