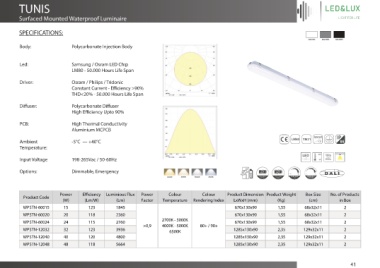

Page 41 - LED&LUX Catalogue- V1.0

TUNIS

Surfaced Mounted Waterproof Luminaire

SPECIFICATIONS:

Body: Polycarbonate Injection Body

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: Polycarbonate Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient -5°C — +40°C 65
Temperature:
40°C 198Vac
Input Voltage 198-265Vac / 50-60Hz -5°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
WPSTN-60015 15 123 1845 670x130x90 1,55 68x32x11 2
WPSTN-60020 20 118 2360 670x130x90 1,55 68x32x11 2
2700K - 3000K
WPSTN-60024 24 115 2760 670x130x90 1,55 68x32x11 2
>0,9 4000K - 5000K 80+ / 90+
WPSTN-12032 32 123 3936 6500K 1285x130x90 2,35 129x32x11 2
WPSTN-12040 40 120 4800 1285x130x90 2,35 129x32x11 2
WPSTN-12048 48 118 5664 1285x130x90 2,35 129x32x11 2

41
