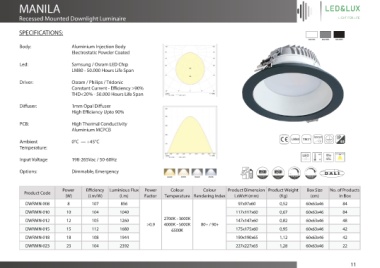

Page 11 - LED&LUX Catalogue- V1.0

MANILA

Recessed Mounted Downlight Luminaire

SPECIFICATIONS:

Body: Aluminium Injection Body
Electrostatic Powder Coated

Led: Samsung / Osram LED Chip
LM80 - 50.000 Hours Life Span

Driver: Osram / Philips / Tridonic
Constant Current - Eciency >90%
THD<20% - 50.000 Hours Life Span

Diuser: 1mm Opal Diuser
High Eciency Upto 90%

PCB: High Thermal Conductivity
Aluminium MCPCB

Ambient 0°C — +45°C 40
Temperature:
45°C 198Vac
Input Voltage 198-265Vac / 50-60Hz 0°C 264Vac

Options: Dimmable, Emergency

Power Eciency Luminious Flux Power Colour Colour Product Dimension Product Weight Box Size No. of Products
Product Code
(W) (Lm/W) (Lm) Factor Temperature Rendering Index LxWxH (mm) (Kg) (cm) in Box
DWRMN-008 8 107 856 97x97x60 0,52 60x63x46 84
DWRMN-010 10 104 1040 117x117x60 0,67 60x63x46 84
DWRMN-012 12 105 1260 2700K - 3000K 147x147x60 0,82 60x63x46 48
>0,9 4000K - 5000K 80+ / 90+
DWRMN-015 15 112 1680 6500K 175x175x60 0,95 60x63x46 42
DWRMN-018 18 108 1944 190x190x65 1,12 60x63x46 42
DWRMN-023 23 104 2392 227x227x65 1,28 60x63x46 22

11
